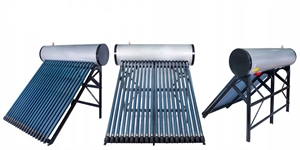

Picture of Pressure Solar Collector Eczone Heater

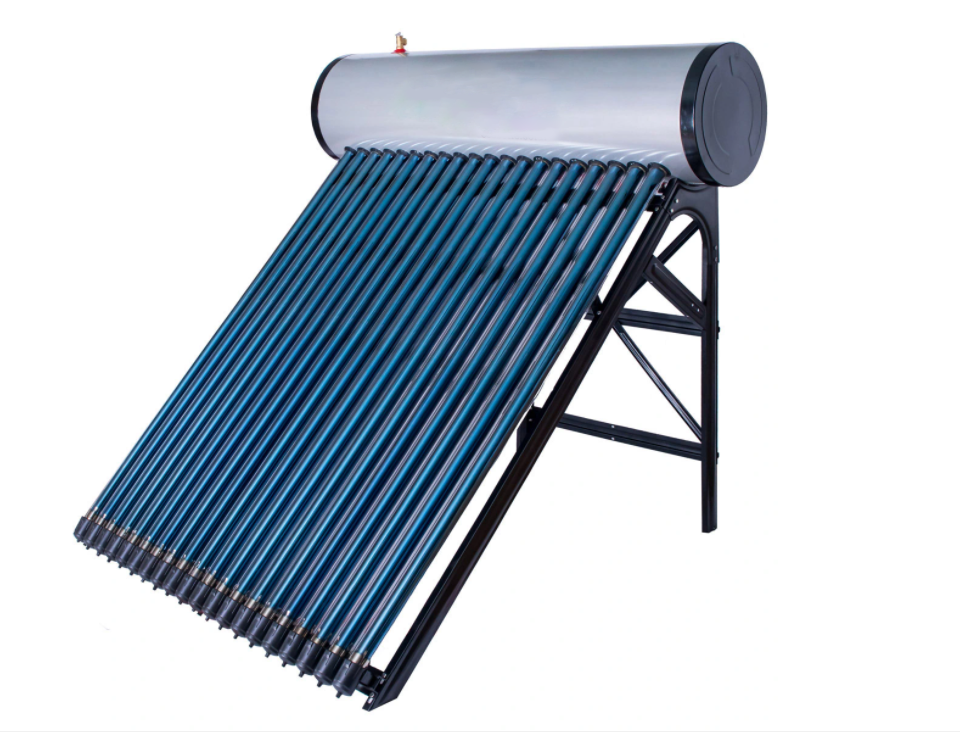

Pressure Solar Collector Eczone Heater

SKU: FS9100331
Solar pressure collector eczone heater
Reproduction is welcome and allowed for free circulation only.


Pressure Solar Collector Eczone Heater

Description
Solar pressure collector eczone heater
Compact pressure collector

Pressure collectors are cheap and, at the same time, failure-free devices, they are used to heat water with the use of sunlight, they are an alternative solution to expensive and complex traditional solar systems. An additional advantage of the pressure manifold is its very simple installation, which does not require special skills and can be made on your own without losing the warranty. No electrical equipment is needed for the operation of pressure collectors.

ADVANTAGES
The largest tank in its class. external dimensions: width 189 cm, diameter 47 cm.
Simple assembly
PZH approval.
The water in the reservoir is under constant pressure. Thanks to this, the pressure of hot water supplied to our tap is the same as in the water supply network.
The pressure collector can be located in any sunny place. The water pressure will always be that of the network.
Low daily drop in water temperature in the tank. Thanks to the insulation with highly compacted polyurethane foam, the daily drop in water temperature is 6-10 degrees C.
The time of maintaining the temperature of hot water in the tank is about 72 hours.
No water in the vacuum tubes. The pipes have heat sinks with copper heat-pipes installed.
If one pipe is damaged, the collector continues to function and the replacement of the damaged pipe is very simple
Magnesium anode for additional tank protection.
Short payback time.
Simple construction
Self-assembly possible.
Reliability.
Universal frame for mounting on a straight and inclined surface.

INCLUDED IN THE SET
Vacuum solar collector (20 vacuum tubes with a triple ALN / AIN-SS / CU absorption layer using HEAT PIPE) Insulated water tank made of SUS-304-2B stainless steel with a capacity of 200 L.
universal steel frame (galvanized, powder coated) adapted for installation on a flat and inclined surface
magnesium anode (installed in the hopper)
electric heater (installed in the tank)
safety valve (pressure-thermal)
check valve
thermo-conductive paste
operating and assembly manual

HEATER FEATURES
Water tray: capacity 200 liters, SUS 304-2B stainless steel
Number of vacuum tubes: 20 pcs
Vacuum tube size: 58mm / 1800mm
Heat-Pipe Application: YES
Absorber type: three-layer ALN / AIN-SS / CU
Frame: galvanized steel, powder coated
Tank thermal insulation: high-density polyurethane foam, min. 50mm
Heat exchanger: heat-pipe copper sleeve, nickel-plated
Hail resistance: Φ25 mm
Efficiency: raises water temperature by 45-60 * C on a sunny day

CONSTRUCTION AND PRINCIPLES OF OPERATION
Building:
The compact ecozone HP pressure manifold includes: an insulated water tank, vacuum pipes and a frame.

The water tank is made of SUS 304-2B stainless steel, 1.2 to 3 mm thick. The external insulation of the storage tank is made of high-density polyurethane foam with a minimum thickness of 50 mm. There are technical holes in the container, for example for connecting and draining water, and the socket for the sleeve into which we insert the end (condenser) of the heat-pipe. The number of sleeves depends on the capacity of the reservoir. The cylinder is factory tested with a minimum working pressure of 9 bar and can be safely connected to the water supply.

Vacuum tubes are made of high-quality borosilicate glass. There is a vacuum between the two layers of glass, which is a perfect insulator to prevent heat loss. The glass is covered with a triple absorber of the latest generation ALN / AIN-SS / CU, which is used to concentrate direct or diffused solar radiation. The individual layers of the applied absorber are used to absorb solar radiation and transform it into thermal energy. The task of the subsequent layers of the absorber is to keep as much energy inside the vacuum tubes as possible, preventing its loss through infrared radiation. The temperature inside the pipes can reach nearly 300 0C. Inside each vacuum tube there is an aluminum heat sink with a copper tube (heat-pipe) in its central part. The copper used in the production of the heat-pipe is oxygen-free, which ensures long and reliable operation of the pipe. Inside the heat-pipe there are substances that start to boil at a temperature of 250C.

The frame on which the water container and vacuum tubes are placed is designed so that it can be placed on a flat surface as well as on an inclined surface. The angle of inclination of the rack is optimal for the vacuum tubes to achieve the highest efficiency.

Principle of operation:
Thanks to the three-layer ALN / AIN-SS / CU absorber and the vacuum inside the vacuum tube, the sun falling on the vacuum tubes turns into heat. The temperature inside the pipe reaches even 300 0C. The aluminum heat sink in the center of the vacuum tube transmits the temperature to a copper heat-pipe inserted into the center of the heat sink. Inside the copper heat-pipe there is a rapidly boiling substance that starts to boil at 25 degrees C. In the boiling process, the vaporized substance rises up where it gives off heat energy in the heat-pipe, then the steam will condense and flow down to repeat the entire process. The tube condenser smeared with thermo-conductive paste is inserted into the socket of the het-pipe sleeve installed in the container. The heated heat-pipe condenser transfers the temperature to the socket of the sleeve, which heats the water in the reservoir through the thermo-conducting paste. Hot water rises up, cooler water sinks lower. A tube is mounted inside the container, thanks to which, after unscrewing the tap, we take water only from the upper part of the container, while cold water is led to the very bottom. The water in the pressure reservoir is under constant pressure from the water supply system, and is automatically refilled when the tap is turned on. A pressure safety valve is installed on the tank, which in the event of too high water temperature will open, letting hot water out, cold water is automatically released into the tank, the water temperature inside the tank drops, the valve automatically stops releasing hot water. Due to the fact that there is water under constant pressure in the tank, our set can be installed lower and the water will be easily delivered to the higher floors of the building. The set does not need any electrical equipment or expansion tanks for proper functioning, which makes it reliable.
