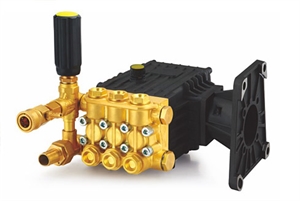

Picture of Plunger Pump Series

Plunger Pump Series

SKU: FS778449
Reproduction is welcome and allowed for free circulation only.


Pump Feateres:
·Forged brass cylinder
·Anodized aluminum crankcase
·Ceramic plungers
·Fixed rate chemical injector
·Built-in self suction unloader
·Pressure adjustable
·Quick connect outlet
·NSK Bearing

Optional:
·Thermal relief valve
·Pressure gange

Technical parameters:
ModelMax Pressure(bar) Flow Rate(LPM) R.P.M Power Crank bore(mm)Shaft diameterG.W(KGS) Carton Dimension(MM)
3WZ-1807D1A3600/2504.0/15L340013.0HP18mm25.4mm9320x280x240
3WZ-1807D1A2900/2004.0/15L34009.0HP18mm25.4mm9320x280x240
3WZ-1807D1A2500/1704.0/15L3400178FE18mm25.4mm9320x280x240
3WZ-1807D1A3600/2504.0/15L3400186FE18mm25.4mm9320x280x240
