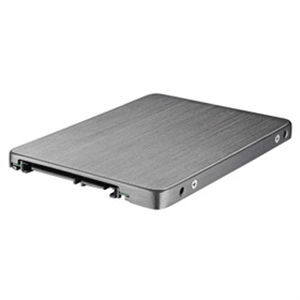

Picture of FS33033 SandForce SF-2281 2.5inch 480GB SATA III SSD (Solid State Disk)

FS33033 SandForce SF-2281 2.5inch 480GB SATA III SSD (Solid State Disk)

SKU:
FS33033
Reproduction is welcome and allowed for free circulation only.


FS33033 SandForce SF-2281 2.5inch 480GB SATA III SSD (Solid State Disk)

Quick Details
Products Status: Stock Application: Laptop Type: Internal
Style: SSD SSD Capacity: 480GB Size: 2.5"
Interface Type: SATAII Speed: N/A Cache: 64MB
Brand Name:FIRSTSING Model Number:  FS33033 Place of Origin: Guangdong China (Mainland)
Storage Media: NAND Flash NAND Type: MLC Solution: SandForce SF-2281
Max Sustained Read: 560MB/s Max Sustained write: 510MB/s 4KB Random IOPS: 30,000/10,000
Average Access time: 0.1ms S.M.A.R.T: Support ECC: Support
TRIM: Support
Packaging & Delivery
Packaging Detail: standard package
Delivery Detail: within 3 business days
Specifications

1.2.5'' SATAII 3Gb/s SSD
2.Max Read:220MB/s *Max Write:180MB/s
3.TRIM Support/64MB Cache
4.CE,FCC,RoHS
5.warranty 3 years

Item Model 60GB 120GB 240/480GB
General Form factor 2.5" 2.5" 2.5"
Solution SandForce SF-2281 SandForce SF-2281 SandForce SF-2281
interface SATAIII SATAIII SATAIII
  Capacity 60GB 120GB 240/480GB
Cache 64MB 64MB 64MB
Sustained Read 560MB/S 560MB/S 560MB/S
Sustained Write 510MB/S 510MB/S 510MB/S
4KB Random Read IOPS 30,000 30,000 30,000
4KB Random Write IOPS 10,000 10,000 10,000
Average Access time 0.1ms 0.1ms 0.1ms
Storage Media NAND Flash MLC MLC MLC
Power Consumption input Voltage 5V+/_5% 5V+/_5% 5V+/_5%
Idle 0.5W 0.5W 0.5W
Active 2.0W 2.0W 2.5W
Reliability& Endurance Write endurance 16years @100GBytes write and erase per day at 60GB
Read endurance unlimited
Wear-Leveling Algorithm Dynamic and static wear-leveling
Data Retention 10years at 25ºC
MTBF 2,000,000hours
ECC Supports BCH ECC 8bits or 15bits  in 512 bytes
TRIM Support
Bad Block Management Auto Bad Block Management in system
Environment Operating Temperature 0-70ºC
Non-operating Temperature -40-85ºC
Shock 2000G(@0.5ms half sine wave)
Vibration 20G(40-2000HZ)
Humidity 5-95%
Warranty 2years
Available unit Available,NO EOL
Testing Platform Intel Core2 Q8200 2.33GHz,DDR2 800 2GB*2 double channel,Intel P45+ICH10R
chipset,Win7  7600 RTM
Testing Software ATTO Disk Benchmark 2.34.0.0
Dimension: Height(mm) 9.5± 0.25
  Width(mm) 69.8±0.25
  Length(mm) 100± 0.25
  Weight(g) 80
