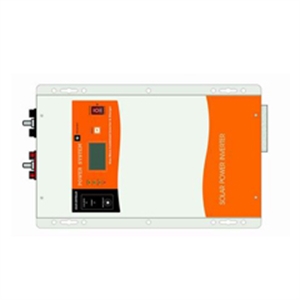

PV3000 Series 1KW-3KW SOLAR Inverter

SKU: FS00018863
Reproduction is welcome and allowed for free circulation only.

Application:

Applied in the field of industrial process controls, battery charging requirements, solar system.Camping & Outdoors, Renewable Newsletter,

Manual Main Features:

•12v/24vdc input optional

•Max. AC charger current 70A(Optional)

•Inbuilt pure copper transformer

•Pure sine wave output

•LCD status display

•MPPT solar controller 20A~40A

•50Hz/60Hz automatic

•RS232 with free CD(optional)

•Battery priority function

Specifications:

Model PV1012C PV1024C PV2012C PV2024C PV3012C PV3024C
Rated Output Power(W) 1000 2000 3000
Line mode specifications
Input Voltage 12V 24V 12V 24V 12V 24V
Input Frequency 50Hz@40-80Hz/60Hz@40-80Hz
Output Voltage Waveform Pure Sine Wave
Output Short Circuit Protection Current limit (Fault after 10s)
Inverter Mode Specifications
Output Voltage Waveform Pure Sine Wave
Power Factor 1
Output Voltage (V) 110Vac/120Vac/220Vac/230Vac ±10%
Output Frequency (Hz) 60Hz ± 0.3Hz / 50Hz ± 0.3Hz
Auto Tracking Main Frequency Yes (Following main first connection);50Hz @40-80Hz;60Hz @40-80Hz
Output Voltage Regulation ±10% rms
Efficiency >80%
Over-Load Protection (110%<load<125%) ±10%: Fault (shutdown output) after 15 minutes; (125%<load<150%) ±10%: Fault (shutdown output) after 60s; Load>150 ±10%: Fault (shutdown output) after 20s
Surge Rating 3000VA 6000VA 9000VA
Capable Of Starting Electric Motor 1HP 1HP 2HP
Inverter Breaker Size 10A 30A
DC Input Voltage 12V 24V 12V 24V 12V 24V
Min DC Start Voltage 11V/22V
Low Battery Alarm 10.5Vdc ± 0.3Vdc for 12V battery; 21.0Vdc ± 0.6Vdc for 24V battery
Low DC Input Shut-Down 10.0Vdc ± 0.3Vdc for 12V battery; 20.0Vdc ± 0.6Vdc for 24V battery
High DC Input Alarm & Fault 16.0Vdc ± 0.3Vdc for 12V battery; 32.0Vdc ± 0.6Vdc for 24V battery
High DC Input Recovery 15.5Vdc ± 0.3Vdc for 12V battery; 31.0Vdc ± 0.6Vdc for 24V battery
Power Saver Load 25W
Charger Mode Specifications
Input Voltage 110Vac/120Vac/220Vac/230Vac
Input Voltage Range 96~127Vac/ 155~265Vac
Output Voltage 110Vac/120Vac/220Vac/230Vac ±10%
Charge Current
Charge Current Regulation Charge Current Adjustable: 25%, 50%, 75%, 100%. (Optional)
Battery Initial Voltage 0-15.7Vdc / 31.4Vdc (can operate with 0V battery)
Charger Short Circuit Protection Circuit breaker
Over Charge Protection Bat. V 15.7Vdc/ 31.4Vdc , beeps 0.5s every 1s & fault after 60s
General Specifications
Certification CE / Soncap / ISO9001
Operating Temperature Range 0°Cto 40°C
Storage Temperature -15°C to 60°C
Operation Humidity 5% to 95%
Audible Noise 60dB max
Cooling Forced air, variable speed fan
Size 1012C / 1024C / 2012C / 2024C / 3012C / 3024C: 460x260x185MM
Gross Weight 21KG 26KG 29.8KG

MPPT solar controller function
Rated voltage 12/24V DC
Rated charge current 40A
Load current 15A
Input voltage range 15-55V DC
Max. PV open circuit array voltage 55V DC
Typical idle consumption At idle< 10mA
Overload protection(DC load) 2.0*Inom>5s; 1.5*Inom>20s; 1.25*Inom temperature controlled
Bulk charge 14.6V(default) 29.2V(default)
Floating charge 13.4V(default) 26.8V(default)
Equalization charge 14.0V(default) 28.0V(default)
Over charge disconnection 14.8V 29.6V
Over charge recovery 13.6V 27.2V
Over discharge disconnection 10.8V(default) 21.6V(default)
Over discharge reconnection 12.3V 24.6V
Temperature compensation 13.2mV/C 26.4mV/C
Lead acid battery settings Adjustable
NiCad battery settings Adjustable
Load control mode 1.Low Voltage Reconnect(LVR):Adjustable;2.Low Voltage Disconnect(LVD):Automatic disconnection;3.Reconnection:Includes warning flash before disconnect and reconnection
Low voltage reconnect 12.0-14.0Vdc 24.0-28.0Vdc
low voltage disconnet 10.5-12.5Vdc 21.0-25.0Vdc
Ambient temperature 0 to 40°C (full load); 40-60°C (de-rating)
Altitude Operating5000m, Non-Operating 16000m
Protection class IP21
Battery temperature sensor BTS-optional remote battery temperature sensor for increased charging precision
Terminal size(fine/single wire) #8 AWG
