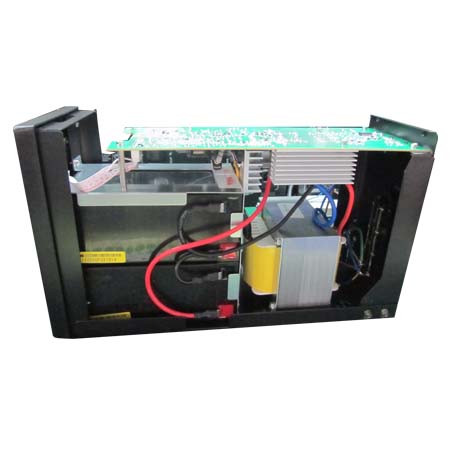

Picture of EW2000 Series 1200VA-1500VA UPS

EW2000 Series 1200VA-1500VA UPS

SKU: FS00018869
Reproduction is welcome and allowed for free circulation only.

Application:

- Line interactive UPS is the perfect protection partners for computer,workstations and POS system.
- Widely used in municipal, bank, postal coupons, communication,
- transportation,radio and television, and power,
- and public hospital, industrial control, defense, etc,
- the computer room, data center, and the server for electric power
- environmental requirements of network equipments, strict communication and information.

Manual Main Features:

Microprocessor control guarantees high reliability
Cold start function (DC power on).
Generator Compatible.
Lightning and surge protection.
Short circuit and overload protection.
50/60Hz frequency auto sensing and selection.
Boost and buck AVR (Auto voltage regulation).
Tel/Modem internet surge suppression.
Automatically charging when UPS off.
History record of power failure events.
Schedule shutdown & reboot.
Advanced battery management .
Battery low voltage, overload & short circuit protection.
Back up, on-line, battery status, power status display by software.
Advanced automatic constant charging circuit, prolongs battery life.
Automatic buck and boost AVR function, wide input voltage 145-3000VAC.
Lead-Acid, maintenance free battery inside, provides strong power to users.

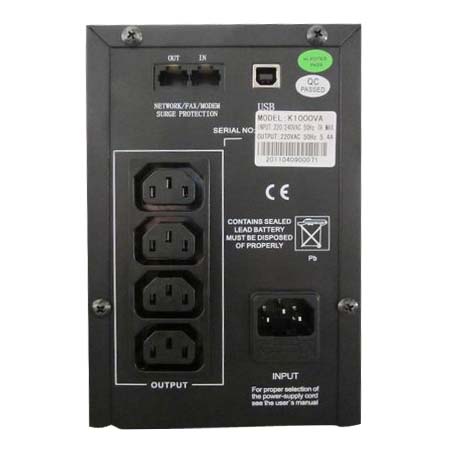

BYPASS outlet available, user can connect equipment of heavy load without damaging UPS.
Technical of PWM adjustment and advanced MOSFET power components, ensures stable performance.

Specifications:

MODEL EW2000 1200 EW2000 1500 EW2000 1500
CAPACITY 1200 VA /720W 1500 VA / 900W 1500 VA / 900W
INPUT
Phase Single
Voltage 110/120 VAC or 220/230/240 VAC
Voltage Range 81-145 VAC / 162-290 VAC
Frequency Range 60/50 Hz (auto sensing)
OUTPUT
Phase Single
Voltage(Btt. Mode) 110/120VAC or 220/230/240VAC
Voltage Regulation(Batt. Mode) ±10%
Frequency Range (Batt. Mode) 60 Hz or 50 Hz ±1 Hz
Transfer Time Typical 2-6 ms, 10ms max.
Waveform (Batt. Mode) Modified SineWave
BATTERY
Battery Type & Number 12 V/7 AH x 2 12 V/9 AH x 2 12 V/9 AH x 2
Typical Recharge Time 8hours recover to 90% capacity
Backup Time(1 PC load with 15 monitor) 30-40minutes 40-50minutes 40-50 minutes

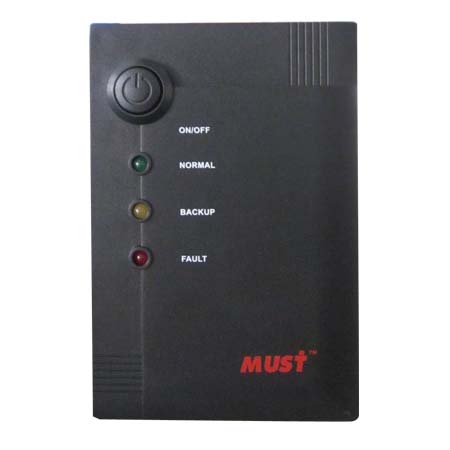

INDICATORS
AC Mode The 1st green LED lighting
Battery Mode The 2nd yellow LED flashing
PROTECTION
Full Protection Overload, discharge, Short-circuit and overcharge protection
TRANSFER TIME
Typical 4-8ms
ALARM
Battery Mode Sounding every 10 seconds
Low Battery Sounding every second
Overload Sounding every 0.5 second
Battery Replacement Alarm Sounding every 2 seconds
Fault Continuously sounding
PHYSICAL
Dimension, D X W X H (mm) 340 x 122 x 188
Net Weight (kgs) 9.4 9.6 9.6
OPERATING ENVIRONMENT
Humidity 0-90 % RH @ 0- 40°C (non-condensing)
Noise Level Less than 45dB
MANAGEMENT

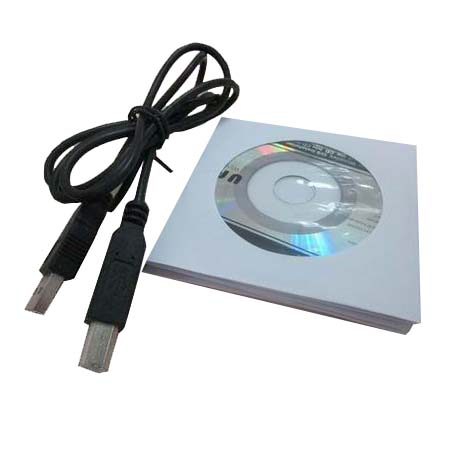

Optional USB/RS-232 Port Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC
