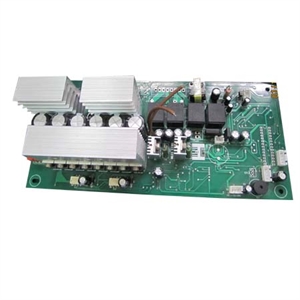

Picture of EW2150 Series 500VA-1500VA Sine wave UPS

EW2150 Series 500VA-1500VA Sine wave UPS

SKU: FS00018871
Reproduction is welcome and allowed for free circulation only.

Application:

- High quality and availablity of energy adapted to suit specific critical needs,
- Covering a vast range of applications.
- Silent running
-Can be used to protect other senstiive electronic devices including Home Cinemas, DVD players, Satellite and Digital Terrestrial receivers.

Manual Main Features:

Maximum power protection with PowerShield UPSmonitoring and shutdown software available for free download from our website www.mustups.com.
Suitable for installation on PCs running Windows Vista, 2003, XP, 2000, Me, 98; Linux, Mac OSX and the Sun Solaris operating system.
Accurate pure sine wave output ;strong capacity of different load.
Advanced performance due to the CPU control.
Wide range of power input and accurate output AVR.
Perfect protection for overload ,short circuit ,over-voltage ,low-voltage and over-heating etc.
Adapt to various of power net well ,compatible with generator
Front panel LCD display providing status, load and battery information and LEDs (standard version).
Compact dimensions and ergonomic design: it can be placed on a desk top or other convenient location, with easy to access connections and informative front panel.
UPS start automatically when the main power recover(optional).
Intelligent battery management.

Specifications:

MODEL EW2150500M EW2150650M EW2150800M EW2150 1000M EW2150 1500M
CAPACITY 500VA/350W 650VA/455 W 800VA/560W 1000VA/700W 1500VA/1050W
INPUT
Phase Single
Voltage 100/110/120/127/220/230(± 25%) VAC
Voltage Range 81-145VAC/145-290VAC
Frequency Range 60/50 ± 1% Hz (auto sensing)
OUTPUT
Phase Single
Voltage (Batt. Mode) 115VAC or 230 VAC
Frequency Range (Batt. Mode) 60 Hz or 50 Hz ±1 Hz
Transfer Time Typical 2-6 ms, 10ms max.
Waveform (Batt. Mode) Sine Wave
BATTERY
Battery Type & Number 12V/7AHx1 12V/7AHx1 12V/9AHx1 12V/7AHx2 12V/9AHx2
Typical Recharge Time 8 hours to 90% after complete discharge
Backup Time(at a 1 PC load with 15 monitor) 10 minutes 9 minutes 8 minutes 13minutes 16minutes
Direct Voltage 12V 12V 12V 24V 24V
INDICATORS
LCD Indicator with Blue Back Light The LCD will self turn on when the UPS is functioning including in, off, charging mode and fault mode
PROTECTION
Full Protection Overload, discharge, and overcharge protection
ALARM
Battery Mode Sounding every 10 seconds
Low Battery Sounding every second
Overload Sounding every 0.5 second
Battery Replacement Alarm Sounding every 2 seconds
Fault Continuously sounding
PHYSICAL
Dimension, D X W X H (mm) 375*130*190
Net Weight (kgs) 6.5 6.5 8.0 11 9.0
OPERATING ENVIRONMENT
Humidity 0-90 % RH @ 0- 40°C (non-condensing)
Noise Level Less than 40dB
MANAGEMENT
Optional USB/RS-232 Port Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC
