Picture of EH5110 Series R1kVA-6kVA RACK UPS

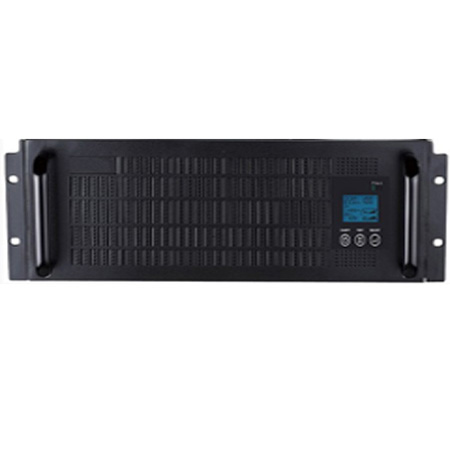

EH5110 Series R1kVA-6kVA RACK UPS

SKU: FS00018876
Reproduction is welcome and allowed for free circulation only.

Application:

Applied to key devices, Communication system, computer network system, some devices need harsh electric power environment.

Manual Main Features:

Sine wave output, Zero conversion time
Input zero frontline detection function, Bypass output
DC starting,Bypass protection
Automatic startup function,Long-term type power design
Strong ability to recharge long-term acting machine
Shelf-check function, Powerful anti-jamming
Can match generator
Support inductive load too
Winpower2000 monitoring software free downloads
Provide intelligent slot, Provide standard battery pack

True Regenerative On-Line Design
As new and innovative technologies have become the backbone of today's businesses, maximum system availability is critical and downtime is more expensive than ever. Increasingly, businesses need a UPS that not only protects against blackouts, but also virtually eliminates more frequent and subtle power disturbances. Surges, sags, line noise and brownouts can disrupt proper operation of sensitive equipment. These disturbances may also create unnecessary production, service, and data recovery costs.
A True Regenerative On-Line UPS provides the highest level of protection against the widest spectrum of power problems. The incoming AC utility source is converted to a regulated DC voltage. From this DC voltage, a new AC voltage is regenerated, providing continuous, clean, tightly regulated power to your equipment. All EH5110 Series UPS plus models include state-of-the-art Input Power Must Correction. This greatly reduces the amount of current demanded from your building wiring system, yielding a highly efficient, "building friendly" UPS.

Plus Microprocessor Control
Must Power EH Series UPS incorporates advanced microprocessor technology. This technology makes possible a high level of internal UPS control and management. With the supplied Winpower® software, all EH Series UPS models support unattended shutdown, management, data logging, and self-diagnostics. The software supports MS Windows® 95, 98, NT, 2000, 2000 Server, ME, XP, Novell Netware® 5 & 6, LINUX and FreeBSD. UPSILON for UNIX supports most popular UNIX platforms and OS versions.

Plus SNMP/HTTP Remote Management Support
Our SNMP/HTTP Agent board provides remote management and monitoring over any Ethernet LAN, WAN or the Internet utilizing a 10BaseT-type connection. The optional SNMP/HTTP agent installs via a port located on the back of every SG Series model.

Plus Extended Battery Ready
All EH Series models have continuous duty inverters and support the addition of optional external battery/charger packs. Whether your application requires a few additional minutes or hours, the EH Series is ready.

Plus Frequency Converter Capability
With a factory modification and the addition of an external input transformer, EH Series models can be configured for use as voltage and frequency converters. This makes theEH Series UPS Plus an ideal choice for worldwide power applications.

Specifications:

Product Series

EH5110 Rack mount online ups

Model

HR1K/HR1KS

HR2K/HR2KS

HR3K/HR3KS

HR6K/HR6KS

Rated Power

VA/W

1KVA / 0.7KW

2KVA / 1.4KW

3KVA / 2.1KW

6KVA/4.2KW

Input

Nominal Voltage

220VAC

Voltage Range

115 ~ 300VAC

176 ~ 276VAC

Frequency Range

46 ~ 54Hz(default), user adjustable within 40~60Hz

46 ~ 54Hz

Power Factor

0.97

0.98

Connection

IEC320-10A inlet

IEC320-16A inlet

Terminal Block

Output

Voltage

220VAC ± 2%

220VAC ± 1%

Frequency

46~54Hz or 50Hz ± 0.2Hz (Line mode)
50Hz ± 0.2Hz ( Battery mode)

46~54Hz (Line mode)
50Hz ± 0.05Hz ( Battery mode)

Waveform

Sine Wave

Overload Capability

108%~150% for 30 sec., ³150% for 300 ms

105%~130% for 10 min., ³130% for 1 min.

Current Crest Ratio

3:1

Bypass

Automatic Transfer

on overload and UPS failure

Before UPS Power-on

Default “NO”, user adjustable to “YES”

Yes

Voltage Range

80~264VAC (Default), user adjustable within 80~286VAC

176 ~ 261VAC

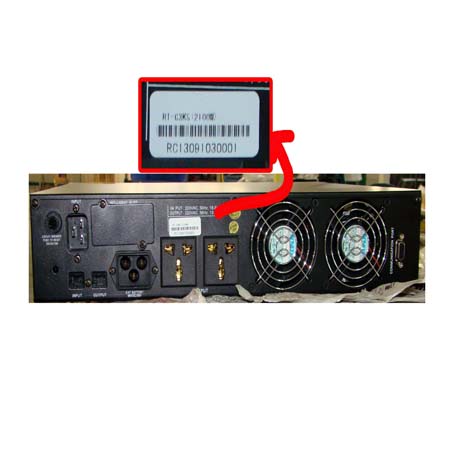

Output Connections

IEC320 -10A * 4

IEC320-10A * 4

IEC320-10A and
Terminal Block

IEC320-10A * 4 and Terminal Block

Transfer Time

0 ms; less than 4 ms from inverter to bypass and vice versa

Zero

LED indicators

Status

Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault

Audible Alarm

Bypass, On battery mode, Battery low, Overload, Fault

Communications

RS-232 Serial Interface

Intelligent Slot;
OPTIONS: WEBPOWER SNMP/WEB card, AS400 card or WinPower CMC)

Network Surge Protection

RJ45 I/O port available for network or Fax/Modem

Environmental

Operating Temperature

0 ~ 40°C

Operating Humidity

20 ~ 90% non-condensing

Main Unit

Net Weight (Kg)

15.3

10.3

11.2

18.3

Dimensions (W x D x H) mm

482.6 x 450 x 88 (2U)

482.6 x 600 x 130 (3U)

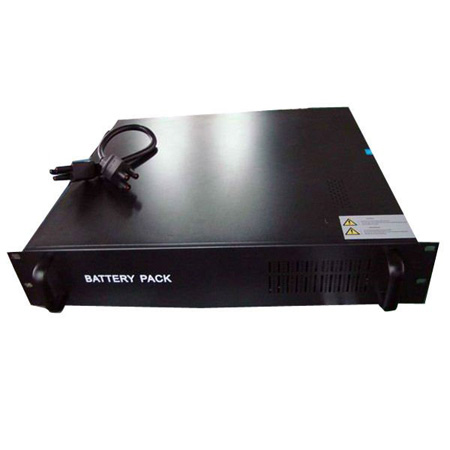

Battery Pack

Type

Internal Batteries

External Battery Pack

Nominal DC Voltage

36VDC

96VDC

240VDC

Backup Time (Full load)

5 min

9 min
(with 1 BP)

5 min
(with 1 BP)

7 min
(with 1 BP)

Net Weight (Kg)

--

25.3

58.2

Dimensions (W x D x H) mm

--

482.6 x 450 x 88 (2U)

482.6 x 600 x 130 (3U)
