Изображение Electric Vehicle Series battery

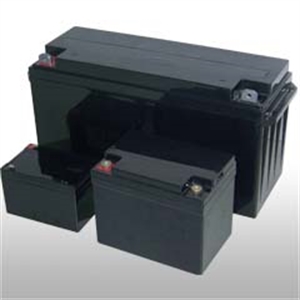

Electric Vehicle Series battery

Артикул: FS00018884
Reproduction is welcome and allowed for free circulation only.

Application:

- Electric Powered Vehicles
- Golf Cars and Buggies
- Wheel Chairs
- Power Tools
- Electric Powered Toys
- Control System

Manual Main Features:

- Sealed and maintenance free operation.
- Non-Spillable construction design.
- ABS containers and covers(UL94HB, UL94V-0) optional.
- Safety valve installation for explosion proof.
- High quality and high reliability.
- Exceptional deep discharge recovery performance.
- Low self discharge characteristic.
- Flexibility design for multiple install positions

Specifications:

Code Nominal
Voltage
(V)
Capacity
(AH)
Dimension Weight Terminal
Length Width Height Total Height Kg Lb Type Position
mm in mm in mm in mm in
6-DZM-12 12 12/2HR 152 5.99 99 3.90 96 3.82 102 4.02 4.2 9.44 F2 G
6-DZM-18 12 18/2HR 182 7.17 77 3.03 167 6.57 167 6.57 6.3 13.89 L1 G
6-DZM-18H 12 18/2HR 182 7.17 78 3.07 170 6.70 170 6.70 6.5 14.33 T1 G
6-DZM-20 12 20/2HR 182 7.17 78 3.07 170 6.70 170 6.70 7.2 28.37 T1 G
DW6-180 6 180/5HR 260 10.30 183 7.20 247 9.72 289 11.38 29 65.14 T2 G
DW8-145 8 145/5HR 260 10.24 182 7.16 246 9.68 288 11.34 30 66.14 F2 G
DM6-180 6 180/5HR 260 10.23 180 7.09 247 9.72 252 9.92 32.0 70.55 F2 G
DM6-225 6 200/5HR 243 9.57 187 7.36 187 7.36 275 10.83 275 1.09 F2 G
