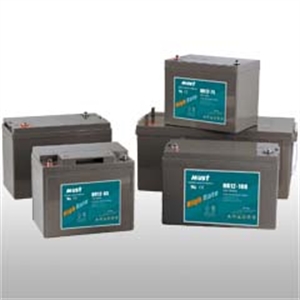

Picture of General Series VRLA Battery

General Series VRLA Battery

SKU: FS00018885
Reproduction is welcome and allowed for free circulation only.

Application:

- Voltage covers: 2V, 4V, 6V, 8V, 12. Capacity: From 0.5Ah to 3000Ah

- Designed floating service life: @ 20 oC/68 oF Capacity under 18Ah is designed for 5 years

- And 8 years for capacity above 24Ah.

- Alarm System

- Cable Television

- Communication Equipment

- Control Equipment

- Security System

- Medical Equipment

- UPS

- Power Tools

- Toys

- Emergency Power System

Manual Main Features:

- Sealed and maintenance free operation

- Non-Spillable construction design.

- ABS Containers and Covers (UL94HB), UL94V-0 optional.

- Safety valve installation for explosion proof.

- High quality and high reliability.

- Exceptional deep discharge recovery performance.

- Low self discharge characteristic.

- Flexibility design for multiple install positions.

Specifications:

Code Nominal
Voltage
(V)
Capacity
(AH)
15min(w/cell)
Dimension Weight Terminal
Length Width Height Total Height Kg Lb Type Position
mm in mm in mm in mm in
FC6-1.3 6 1.3/20HR 97 3.82 24 0.94 52 2.05 58 2.28 0.25 0.68 F3 G
FC6-3.3 6 3.3/20HR 134 5.28 34 1.38 60 2.4 66 2.64 0.59 1.57 F1 G
FC6-3.6 6 3.6/20HR 70 2.76 47 1.85 101 3.98 107 4.21 0.68 1.65 F1 G
FC6-4.0STD 6 4/20HR 70 2.76 47 1.85 101 3.98 107 4.21 0.71 1.65 F1 G
FC6-4.0CUT 6 4/20HR 70 2.76 47 1.85 101 3.98 107 4.21 0.71 1.65 T1 G
FC6-4.5STD 6 4.5/20HR 70 2.76 47 1.85 101 3.98 107 4.21 0.71 1.65 F1 G
FC6-4.5CUT 6 4.5/20HR 70 2.76 47 1.85 107 3.98 107 4.21 0.71 1.65 T1 H
FC6-5 6 5/20HR 70 2.76 47 1.85 101 3.98 107 4.21 0.71 1.65 T1 H
FC6-7.0 6 7.0/20HR 151 5.94 34 4.34 95 3.7 101 3.94 33.5 2.65 F1 H
FC6-10 6 10/20HR 151 5.94 50 1.94 94 3.7 100 3.94 1.73 4.08 F1 H
FC6-12 6 12/20HR 151 5.94 50 1.97 94 3.7 100 3.94 1.80 4.08 F1 H
FC6-180A 6 180/10HR 260 10.2 180 7.02 247 9.63 251 9.75 28 61.6 T5 J
FC6-180B 6 80/10HR 306 11.93 168 6.55 220 8.58 226 8.81 27.5 60.5 T5 J
FC6-200A 6 200/10HR 260 10.14 180 7.02 247 9.63 251 9.79 30 66 T5 J
FC6-200B 6 200/10HR 323 12.6 178 6.94 224 8.73 229 8.93 31 68.2 T5 K
FC12-1.3 12 1.3/20HR 97 3.82 43 1.69 52 2.05 58 2.28 0.5 1.34 F3 L
FC12-2.2 12 2/20HR 178 7.01 35 1.38 61 2.4 67 2.64 0.82 1.98 F3 L
FC12-3.3 12 3.3/20HR 134 5.28 67 2.64 61 2.4 67 2.64 1.38 2.86 F1 L
FC12-4 12 64/20HR 90 3.54 70 2.76 101 3.98 107 4.21 1.41 3.3 F1 C
FC12-4.5 12 4.5/20HR 90 3.82 70 2.76 101 3.98 107 4.21 1.38 3.0 F1 C
