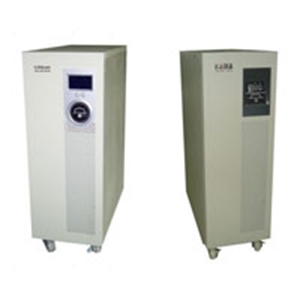

Picture of High Frequency Online UPS  C6-20K

High Frequency Online UPS C6-20K

SKU: FS00018892
Reproduction is welcome and allowed for free circulation only.

Key Features

�� High frequency and double conversion online UPS
�� Single phase
�� Fully digitized microprocessor control
�� Wide input voltage range
�� Advanced PFC technology
�� Self-testing when UPS startup
�� Advanced battery management
�� Automatic battery charging in UPS off mode
�� Lightning and surge protection
�� Short circuit and overload protection
�� Smart RS232 communication with monitoring software
�� Battery voltage and load capacity display
�� SNMP card is option
�� LCD display is option


Technical Specifications

ITEMMODELC6K/C6KSC10K/C10kSC15KSC20KS
CapacityVA / Watts6KVA / 4.2KW10KVA / 7KW15KVA / 10.5KW20KVA / 14KW
InputNormal voltage220VAC
220V Voltage range176-276V for 240VDC
Frequency range40.5~55Hz
Voltage range220VAC+-1%
OutputFrequency range50Hz/60Hz+-0.5% (Battery mode)
Wave form Pure Sine Wave
Transfer between AC mode and battery mode0 ms
Transfer between AC mode and bypass mode"<1ms"
Distortion(Full Load)linear load< 3%
Degree of distortion(Ful l Load)nonlinearload< 5%
Overload capacity105%~130% 10min, >130% 1min, >150% 200ms
Load peak ratio3:1(max)
Battery for C6K/10KTypeMaintenance free valve regulated lead acid (VRLA) battery
Battery voltage240VDC240VDC\\
Battery number(standard type)20*12V*7AH or 16*12V*7AH20*12V*7AH or 16*12V*7AH\\
Backup time (Full load)8Mins8Mins\\
Backup time (Half load)24Mins24Mins\\
Recharge time90%capacity after 8 hrs charging
Battery for long backup typeC6KS/10KS/15KS/20KS240VDC or 192VDC, External battery back.
DisplayLED

Load level/Battery level/Battery mode/Line mode/Inverter/B ypass/Over load/Fault

Audible AlarmBattery ModeBeeping every 4 seconds (re-settable) and every second when battery
OverloadBeeping twice every second
FaultBeeping Continuously
CommunicationsRS-232 InterfaceWith monitoring software
Working EnvironmentSurge protectionRJ-45 I/O port avai lable for network or Fax/Modem
Working temperature- 20��~40��
Humidity0-95% non-condensing
Package dimensionWxDxH (mm)710*440*860710*440*860710*440*860710*440*860
Package sizeWxDxH (mm)710*440*960 710*440*960 710*440*960710*440*960
Package weightGross weight(Kg)93/44101/486565
REMARKC*k --- Standard Type, C*Ks---- Long Time Type
