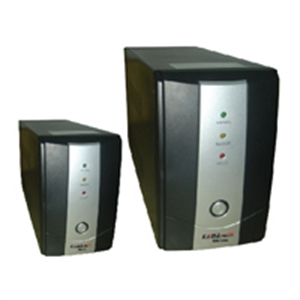

Picture of Line Interactive UPS SMD500-1500

Line Interactive UPS SMD500-1500

SKU: FS00018898
Reproduction is welcome and allowed for free circulation only.

Key Features

�� CPU Control
�� SMD Technology
�� Protection for Short circuit ,overload and battery low voltage
�� LED indication and audible alarm function
�� Intelligent battery management
�� AUTO Restart function
�� Off charge function
�� Cold start function
�� RJ11/RJ45 is option
�� USB is option

Technical Specifications
ITEMMODELSMD500SMD600SMD1000SMD1200SMD1500SMD1000SSMD1500S
Capacity500VA/300W600VA/360W1KVA/600W1.2KVA/720W1.5KVA/900W1.2KVA/720W1.5KVA/1.05KW
InputInput Voltage75-150/155-300*(1+-5%)VAC
Cold StartYes
Input Frequency
Range
50/60HZ+-5% (AUTO Sensing)
OutputWave FormModified Sine Wave
Voltage120/220/230/240VAC
Output Voltage
Range
220/230/240��5%(Max) Battery Mode
Transfer Time4~6ms normal ,Max8Ms
Output Frequency50.0/60Hz��1.0Hz (Battery Mode),follow Main while AC Mode
Efficiency��95% while AC Mode,��85% while DC mode
Short CircuitFuse under AC mode, by softwave under DC mode
Over Load115% +20%/-10% Shut Down after 1 Mins
135% at once
135% at once
Battery And
charger
Battery protectionFUSE
DC Voltage12VDC24VDC
Standard UPS
Battery
1*7AH1*7AH2*7AH2*7AH2*9AHExtemal Bat.
Charge Current0.8A0.8A0.8A0.8A1A4A/24VDC
Backup timeFull load >3min,half load >8min
ProtectionOver charge and over discharge,short Circuit,Overload
Display and AlarmLED display for AC/ DC mode and Fault. Alarm while DC mode/ Battery low / Overload /Battery replacement.
Product Size278*100*143278*100*143146*160*349146*160*349146*160*349146*160*349146*160*349
packing Size (MM)425*400*454425*400*454422*264*275422*264*275422*264*275422*264*275422*264*275
Packing Weight (KG)24/6PCS24/6PCS23/2PCS23/2PCS24.5/2PCS14/2PCS15/2PCS
Back panel
1.Output receptacles
2.AC input with AC fuse
3.USB computer
4. Network/fax/modem/surge Protection
