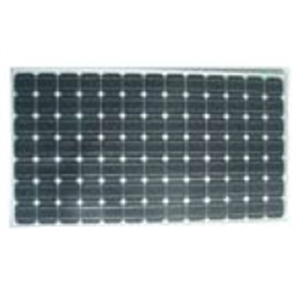

Picture of Off-Grid Solar Power system FG-SPS2000 3000W

Off-Grid Solar Power system FG-SPS2000 3000W

SKU: FS00018918
Reproduction is welcome and allowed for free circulation only.

Technical Specifications
ITEMMODELFG-SPS2000WFG-SPS3000W
System power
capacity
Rated power capacity(watts)2000W3000W
System rated DC
voltage
24VDC24VDC
System outputVoltage220V50HZ or 110V/60HZ220V50HZ or 110V/60HZ
PhaseSingle phaseSingle phase
Wave formPure sine wavePure sine wave
��effectual recharge time mini 6 hours. Longer time will Generate more electricity capacity
Generate electricity
capacity
��5200WH/day6400WH/Day
Reference loads and
expend
only for Reference. You can use the other loads also.please connect with Kemapower to get more advice for different loadsc ondition
TV 25 inch1PCS 6 horus2PCS 6 horus
Desk Fan4PCS 5 horus4PCS 5 horus
Ceiling Fan1PCS 5 horus1PCS 5 horus
Energy Save Lamp6PCS 4 horus6PCS 4 horus
Energy Save Lamp2PCS 4 horus2PCS 4 horus
Computer1PCS 4 horus1PCS 4 horus
Home Printer1PCS 0.5 horus1PCS 0.5 horus
Home Water Pump1PCS 2 horus1PCS 2 horus
Washing Machine 6KG1PCS 0.7 horus1PCS 0.7 horus
Refrigerator 160L1PCS 24 horus1PCS 24 horus
micro-wave oven/1PCS 0.5 horus
Expend capacity5200WH/day6400WH/Day
Power InverterModeN-PSW2KW/24VDCN-PSW3KW/24VDC
Max load capacity2000W3000W
Design featuresHigh Frequency Pure sine wave
Protectionshort circuit, overload,battery low,
Efficiency> 88%
Standing by wastageless than 12Wless than 12W
Remarkplease to the N-PSW series product details
Grid hybrid Inverter (optional)ModeN-PSW2K-GN-PSW3K-G
Combine Charge voltage24VDC24VDC
Combine Charge current0-40Amp for requirement50Amp for requirement
Charger manageCPU control three step charge stage
Transfer voltagetransfer to Grid power when DC < 21.0V or 42V. Back to Battery mode again when DC
> 37.4V or 74.8V
ControllerMode/PCSMPPT1224-30,2PCSMPPT1224-40AMP,2PCS
Rated charge current60AMP80AMP
Rated charge voltage24VDC24VDC
Charge control modeSeries PWM charge mode & State of Charge(SOC),Automatic compensation
Remark please refer to the MPPT series product details
Battery BankMode100AH/12VDC GEL100AH/12VDC GEL
Battery typeDeep cycle gel battery
Capacity900AH/24VDC, 18P2200AH/12VDC,22P
Battery cabinetA20. 4 layer with wheelsC24. 4layer
backup days3 days under for the Reference loads and expend. Extensible
Remarkplease refer to the GEL series product details.
Solar moduleModeMONO150WP/35VDCMONO150/35V
capacity150WP*10PCS150WP*12pcs
Cell efficiency14.13%14.13%
Solar mounting5 array for 10*150WP 6 array for 12*150WP
The other partsBreaker,Arrester,wire collector,Cables set
��Key Features
��

��Battery based OFF-GRID solar system,
��used for home or office
��MPPT charge controller to increase
charge current more than 30%compared
to conventional
��High efficiency inverter to reduce the
staticpower wastage
��Battery type selector and adjustable
chargevoltage to precise battery
requirements
��PWM charge control and three step
charge to prolong battery life
��extensible capacity design for future
requirement
��Grid hybrid solar Inverter is optional

��
