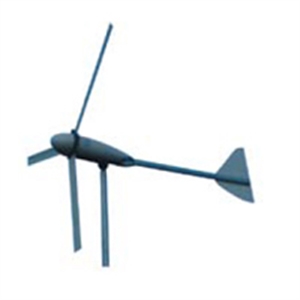

Picture of Wind Generator SZ200-2KW P1

Wind Generator SZ200-2KW P1

SKU: FS00018943
Reproduction is welcome and allowed for free circulation only.

200W-2KW Wind Generator System Specification(Part 1 of 2)
Technical Specifications
ITEMMODESZ200WSZ300SZ500SZ1KWSZ2KW
Generator
Rated power(W)
200W
300W
500W
1KW
2KW
Rated voltage(V)
24
24V
24
48
120
Rotor diameter(M)
2.2
2.5
2.5
2.7
3.2
Start-up windspeed(m/s)
3
2.5
2
2
2
Rated wind speed(m/s)
6
7
8
9
9
Security wind speed(m/s)
35
35
35
35
35
Rated rotating rate(RPM)
450
400
400
400
400
Max rotating rate(RPM)600500500500500
Yaw mode
Mechanical
Mechanical
Mechanical
Mechanical
Mechanical
Shell MaterialAluminum alloyAluminum alloyAluminum alloyAluminum alloyAluminum alloy
Blade
Blade material
Fiber glass
Fiber glass
Fiber glass
Fiber glass
Fiber glass
Blade quantity
3
3
3
3
3
Diameter(mm)2.22.52.52.73.2
Matched tower
Guyed cableGuyed cableGuyed cableGuyed cableGuyed cableGuyed cable
height(mm)
4.5
6
6
6
9
thickness(mm)
2.5
2.5
3.25
3.25
3.5
diameter(mm)
60
48
89
114
140
3
3
333
Optional Tower
section number
\
\
Free standarding tower A, Manual hydraulic tower B
Battery
Advice capacity
12V100AH 2PCS
150AH/24VDC200AH/24VC200AH/48VDC200AH/120VD
Advice battery type
Deep cycle battery
Inverter output
wave form
Modified wave
\
Sine wave
Sine wave
Sine wave
phase
Single
Modified wav
Single
Single
Single
Voltage
220V/110V
Single
220V/110V
220V/110V
220V/110V
OFF GRID Controller
Over Charge protection
30
220V/110V
30
60
60
Over Charge resume
28
30
28
56
56
low voltage protection
21
28
21
44
44
low voltage resume2421
24
48
48
Matched Cable (M) \24202020
Detailed Components Llist
ITEMComponents NamePCSPCSPCSPCSPCS
1
Blades
3
3
3
3
3
2
Blades hub
1
1
1
1
1
3
Nose cone
1
1
1
1
1
4
Generator
1
1
1
1
1
5
Swing mechanism
1
1
1
1
1
6
Tail rod
1
1
1
1
1
7
Tail vane
2
2
2
2
2
8
Guyed cable
4
4
4
4
4
9
Tower
3
3
3
3
3
10
Tower base and accessories
1
1
1
1
1
11
Controller & inverter
1(2 IN 1)
1(2 IN 1)
1(2 IN 1)
1(2 IN 1)
1(2 IN 1)
12
Cable from generator to controller\\\\\
RemarkSometimes the item 11 will be one Controller and one Inverter separately
