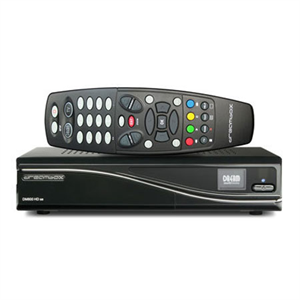

Picture of FS11006 Dream Multimedia DreamBox DM800 SE HD Satellite Receiver

FS11006 Dream Multimedia DreamBox DM800 SE HD Satellite Receiver

SKU:
FS11006
Reproduction is welcome and allowed for free circulation only.

FS11006 Dream Multimedia DreamBox DM800 SE HD Satellite Receiver

Technical Features:
  *400 MHz MIPS Processor
  *Enigma 2, Linux Operating System
  *colored OLED - Display
  *MPEG-2 / H.264 Hardware decoding
  *Tuner: DVB-S2, optional: DVB-C, DVB-T2
  *Tuner Module, Plug&Play
  *2 x Smartcard-Reader (Dreamcrypt CA)
  *Mini USB for Service and software update
  *10/100Mbit Ethernet Interface
  *1 x Scart (RGB, FBAS or S-Video)
  *HDMI
 *2 x USB 2.0
  *analog modem
  *S/PDIF Interface for digital bit stream out (AC-3)
  *64 MByte Flash, 256 MByte RAM
  *SATA
  *for internal SATA HDD 2,5“
  *and one external eSATA
  *unlimited channel lists for TV/Radio
  *channel-change time < 1 second
  *automatic service scan
  *directly bouquet-lists
  *EPG (electronic program guide)
  *multiple LNB-Switching control (supports DiSEqC)
  *OSD in many languages and skin-support
  *Videotext Decoder
  *extern 12V power supply

DreamBox DM 800 HD se technical data

DBS-Tuner mit DVB-S2:
Frequency Range  950 .... 2150 MHz
Demodulation DVB-S (QPSK); DVB-S2 (8PSK,QPSK)
Symbol rate DVB-S: 2 ... 45 Mbaud/s, SCPC/ MCPC
DVB-S2: 10 – 31 Mbaud/s (8PSK) , 10 –30 Mbaud/s (QPSK)

Video decoder:
Video Compression MPEG-2 and MPEG-1 compatible, H.246
Video Formats 4:3 / 16:9
Letterbox for 4:3 TV-Device

Audio decoder:
Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz

Output analog:
Output Level L/R 0,5 Vss on 600 Ohm
THD > 60 dB (1 kHz)
Crosstalk < -65 dB

Output digital:
Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical, Toslink

Ausgang Video:
Ausgangspegel FBAS 1 Vss +/- 0.3 dB an 75 Ohm

Video parameter:
Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard

TV-Scart:
Output: FBAS, RGB, S-Video

Mini USB service connector:
Function: Update of Firmware

Ethernet:
10/100 MBit compatible interface
Function: Update of Firmware

Analoge modem:
analoge modem for Internet connection

SATA Interface:
for use either as internal HDD 2,5“ or eSATAor internal 2,5" HDD

USB
2 x USB 2.0 Host

LNB power and polarisation per tuner:
LNB Current 500mA max.; short-circuit-protected
LNB Voltage vertical < 14V no load, > 11,5V at 400mA
LNB Voltage horizontal < 20V no load, > 17,3V at 400mA

Count of active satellite position:
DiSEqC 1.0/1.1/1.2 and USALS (Rotor Control)

Power consumption:
< 15W at 12V

External PSU
Input:
110-240V AC / 50-60Hz / 0,6A
Output:
12V = / 3,0A

Physical specification:
Ambient Temperature +15°C...+35°C
Humidity < 80%
Size (W x D x H): 225 mm x 145 mm x 52 mm
Weight: 940 g  without HDD
