Picture of 150Mbps IEEE802.11b/g/n Wi-Fi Wireless Network Router Adapter

150Mbps IEEE802.11b/g/n Wi-Fi Wireless Network Router Adapter

SKU: FS911113
Compatibles with IEEE 802.11b/g/n standards Wireless transmission rate up to 150Mbps Support s WMM, voice and video transmit more smoothly Supports DHCP server and client Supports Access Control, supports multiple MAC address access control list Employs MIMO technology, using the echoed signal to enhance 8 times of the original 802.11 g transmission distance Employs WPS(PBC and PIN) encryption, no need to remember long password Supports MAC address filtering, NAT,NAPT address translation. Supports 64/128-bit WEP, WPA/WPA2, WPA-PSK /WPA2-PSK encryption, supports 802.1x security authentication
Reproduction is welcome and allowed for free circulation only.


4426

Compatibles with IEEE 802.11b/g/n standards Wireless transmission rate up to 150Mbps Support s WMM, voice and video transmit more smoothly Supports DHCP server and client Supports Access Control, supports multiple MAC address access control list

Employs MIMO technology, using the echoed signal to enhance 8 times of the original 802.11 g transmission distance

Employs WPS(PBC and PIN) encryption, no need to remember long password  Supports MAC address filtering, NAT,NAPT address translation.  Supports 64/128-bit WEP, WPA/WPA2, WPA-PSK /WPA2-PSK encryption,

supports 802.1x security authentication

Product Specifications

Exceptional Performance

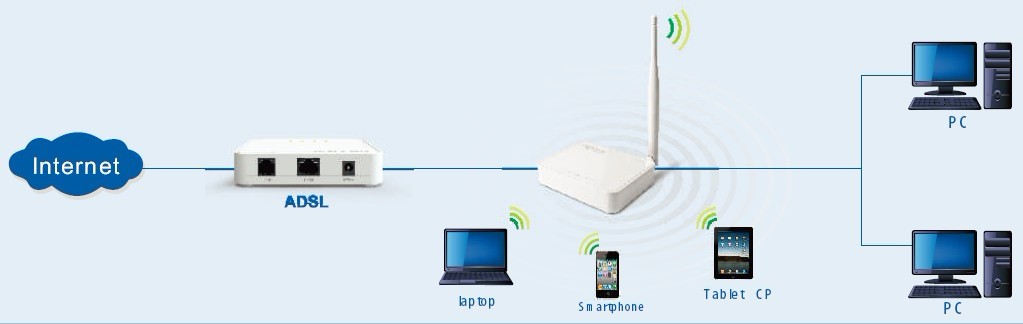

FS911113 uses 11N technology, wireless transmission rate up to 150Mbps, it enables multiple computers to share one Internet connection. With a 5dBi high gain omnidirectional external antenna it has strong signal, the transmission distance is farther, users  don't worry about the signal issue completely.

Multiple Security Protections

FS911113  supports SSID hiding, MAC filtering, supports 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption,supports 802.1x security authentication to ensure the network not be attacked or embezzled. Cooperate with a wireless adapter that has WPS function,FS911113 allows you to instantly set up your network security. Just press the WPS (Wireless safety Setup) button on the router and the adapter or input the PIN code on the PC to automatically establish a secure WPA2 connection which is safer than WEP encryption.No complex passwords need to memory

Rich and practical features

FS911113  supports gateway, AP client and WDS functions, can realize wireless bridge between two or more wireless routers to expand wireless coverage area.

Standards IEEE 802.11g、IEEE 802.11b 、EEE 802.11n、􀀀 IEEE 802.3、IEEE 802.3u、CSMA/CA、CSMA/CD、􀀀 TCP/IP、DHCP、ICMP、NAT、PPPoE

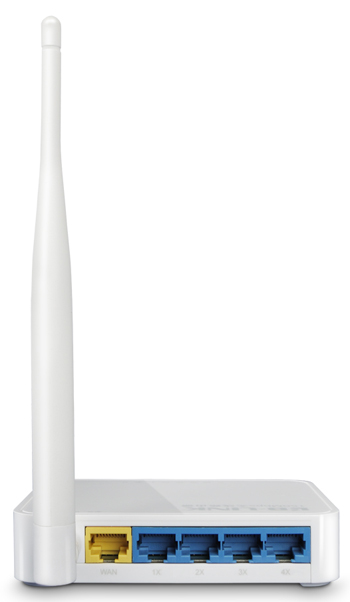

WAN One 10/100M Auto-Negotiation WAN RJ45 port

LAN Four 10/100M Auto-Negotiation LAN RJ45 ports

Radio Data Rate
11n: up to 150Mbps 11g: up to 54Mbps 11b: up to 11Mbps

Working channel
(1-14)Based on your choice of country or region


Receiver Sensitivity
135 -70dBm@10% PER
108M:-70dBm@10% PER
54M: -72dBm@10% PER
11M: -85dBm@8% FER
6M: -88dBm@10% PER
1M: -90dBm@8% FER


Wireless Transmiission Power 15dBm

Status light
Power indicator,constantly light when power on WLAN indicator,glint when data have been transmitted WAN indicator,glint when data have been transmitted LAN indicator,glint when data have been transmitted

Network media(wired) 10BASE-T:3,3e cable UTP 100BASE-TX:5 cable UTP

Operating Temperature:0℃~40℃ Storage Temperature:-40℃~70℃ Operating Humidity:10% ~ 90%, non condensation Storage Humidity:5%~90%, non condensation

Chipset Rt5350

Packing List:

Color Box Package

FS911113

Internet cable

Quick Installation Guide

Power adapter
