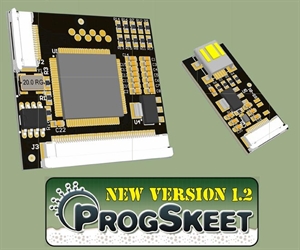

ProgSkeet V1.2 - PS3 Downgrade

ProgSkeet V1.2 - PS3 Downgrade

SKU编号: FS00036978
ProgSkeet V1.2 - PS3 Downgrade
欢迎转载 功德无量


PROGSKEET V1.2 Features:

- Redesigned. Smaller and more stable!
- SWITCH, USB and LED are now located on a SLAVE BOARD
- 15 PIN FCC CABLE connects SLAVE BOARD to PROGSKEET
- Will support new EASY-SOLDER QSB BOARDS, as well as existing NAND / NOR CLIPS
- 1 Mbit SPI FLASH memory on board
- BUS SPI on FCC cable for future expansions
- 100% WINSKEET Support, OPEN DLL library to allow integration in other programs

Hardware specications:

Main board:
- Powerful Actel A3P125 FPGA
- High Quality Branded 48.000Mhz Crystal
- 1Mbit SPI FLASH on board (to store settings and more ...)
- ZIF connector 50 pin expansion port (compatible NOR / NAND connections)
- ZIF 15 pin connector with these signals:
- LED (slave board)
- Switch (slave board)
- USB slave (slave board)
- SPI line (for future expansion tools)
- JTAG line (injectus compatible, necessary to update ACTEL on board)

Slave board:
- Switch on board for future uses (DUAL NAND / NOR SELECTION)
- Status LED on board
- Mini usb slave port
