Picture of Telephone Accessories

Telephone Accessories

SKU: FS00040323
Telephone Accessories
Reproduction is welcome and allowed for free circulation only.

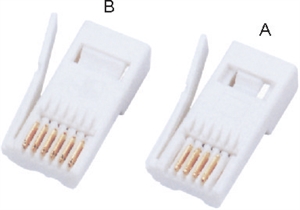

MG-2203A 6P4C UK Plug
MG-2203B 6P6C UK Plug
Plug for CAT3 solid or stranded wire solid or stranded cable.
Electrical
Current Rating:1.5 AMPS at 25'C
Voltage Rating:125 V AC
Insulation Resistance:1000 M�� Min.500V DC EIA-364-21C
Withstand Voltage:1000 V AC RMS OR 1500 V DC at 0.5mA 50 Hz/60Hz Minute
EIA-364-20B
Contact Resistance:40 m�� Max. EIA-364-23B
Mechanical
Retention Strength:57.83N Min.EIA-364-98
Durability:1000 Mating Cycles Min.
Environmental
Operation Temperature:-20'C~+70'C
Storage Temperature:-10'C~+40'C Relative Humidity<80%
Material
Housing:PC
Flammability Class:UL94V-0/V-2
Terminal:Thickness 0.35mm Phosphor Bronze Selectrive Gold Plating Over Nickel
Gold Plating: G/F inch,3u Inch,6u inch,15u inch,30u inch,50u inch
UL approval, ROHS Compliant,ISO9001:2000,ISO14001:2004,QC08000 approval
