Picture of Telephone Accessories

Telephone Accessories

SKU: FS00040325
Telephone Accessories
Reproduction is welcome and allowed for free circulation only.

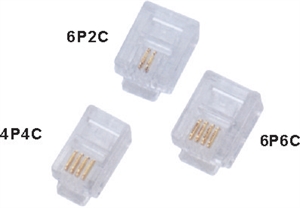

MG-2201 Modular plug
1.UL applications: 250V AC, 2A (max.)
2.Dielectric withstanding voltage: 500V AC
3.Insulation resistance
The plugs accept flat oval (" silver stain" ) cable or round jacketed, unshielded cable with 2 or 4 conductors.
UL applications: 250V AC, 2A (max.)
Dielectric withstanding voltage: 500V AC
Insulation resistance: 35M Ohm (max.), after environmental testing
Cable-to-plug tensile strength: 20lbs (89N) (min.)
Durability: 750 matching cycles
Temperature range: -40 ~ 60oC
Housing: polycarbonate (PC) UL94-V-0 or UL94-V-2
Contact blade: phosphor bronze
Gold plating: 3u" - 50u" available
100pcs RJ-11 4P4C,6P2C,6P6C Handset Connector Modular Plug
