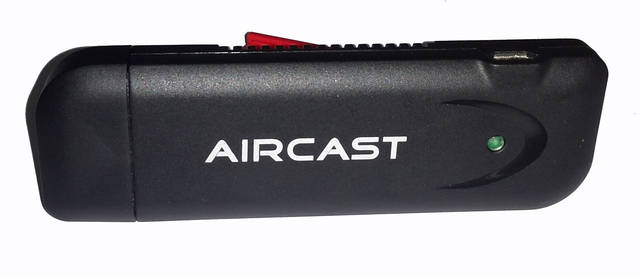

Picture of Push miracast Po airplay DLNA external antenna signal King

Push miracast Po airplay DLNA external antenna signal King

SKU: FS995686
Push miracast Po airplay DLNA external antenna signal King
Reproduction is welcome and allowed for free circulation only.


Push miracast Po airplay DLNA external antenna signal King

This document helps user to understand how to use RK2928 wireless HDMI dongle and what kind of devices they need to work with the dongle. Basically, RK2928 wireless HDMI dongle have implemented three features, Miracast (WiFi Display or WFD), DLNA and Airplay which are running on separate function mode, or rather, two different WIFI working mode.

CPU RK2928

Main Frequency Cortex-A9,Up to 1.2GHz

Inner memory 512M  DDR3

Operating system linux

WiFi  8188

Interface definitions and specifications

USB USB HOST 2.0

HDMI Connecting high-definition TV, the output audio and video signals.

Voltage parameters 5V-1AAppearance description

Display Through the HDMI output display

Product Dimension L×W×H(mm) 83mm*29mm*10mm

 Miracast is a peer-to-peer wireless screencast standard formed via Wi-Fi Direct connections in a manner similar to Bluetooth. It enables wireless or wired delivery of compressed standard or high-definition video to or from desktops, tablets, mobile phones, and other devices. Both the sending and receiving devices must be Miracast certified for the technology to work. However, to stream music and movies to a non-certified device there will be Miracast adapters available that plug into HDMI or USB ports. Miracast allows a portable device or computer to send, securely, up to 1080p HD video and 5.1 surround sound (AAC and AC3 are optional codecs, mandated codec is linear pulse-code modulation — 16 bits 48 kHz 2 channels).However, it works only over Wi-Fi and cannot be used to stream to a router access point.It was created by the Wi-Fi Alliance and billed as an open alternative to Apple's AirPlay Mirroring. It allows users to, for example, echo display from a phone or tablet made by Company A onto a TV made by Company B, share a laptop screen with the conference room projector in real-time, and watch live programs from a home cable box on a tablet.
