Picture of Solar Panel Solar Battery 20W 12V Regulator

Solar Panel Solar Battery 20W 12V Regulator

SKU: FS9100309
It is possible to turn on the connected receiver after sunset for a specific number of hours.
Reproduction is welcome and allowed for free circulation only.


Solar Panel Solar Battery 20W 12V Regulator

Description

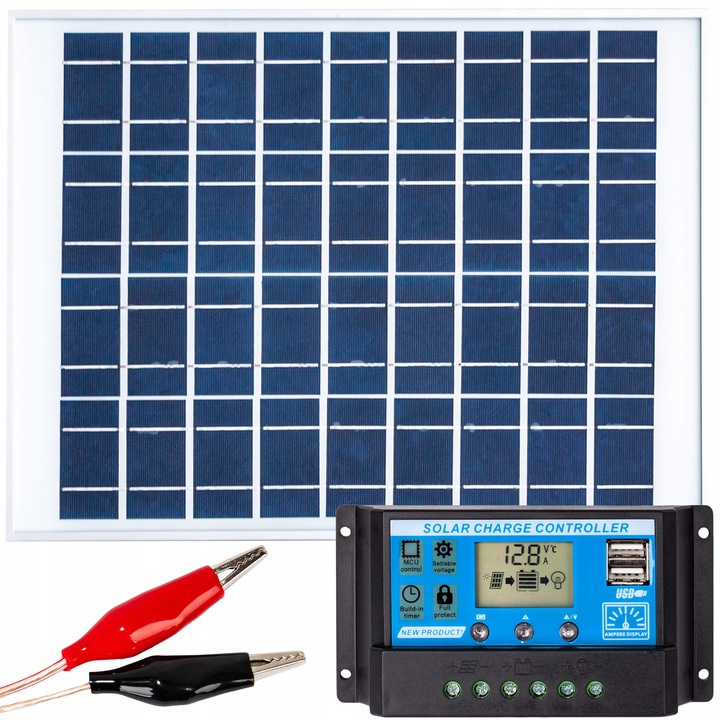

Ready photovoltaic kit
With twilight sensor function
Panel 20W volt polska
Voltage regulator 10A
Connection cables

Set contents:

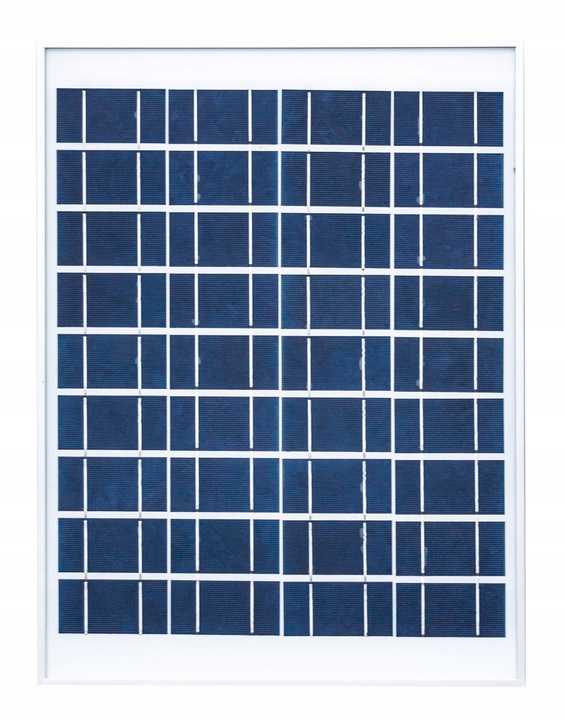

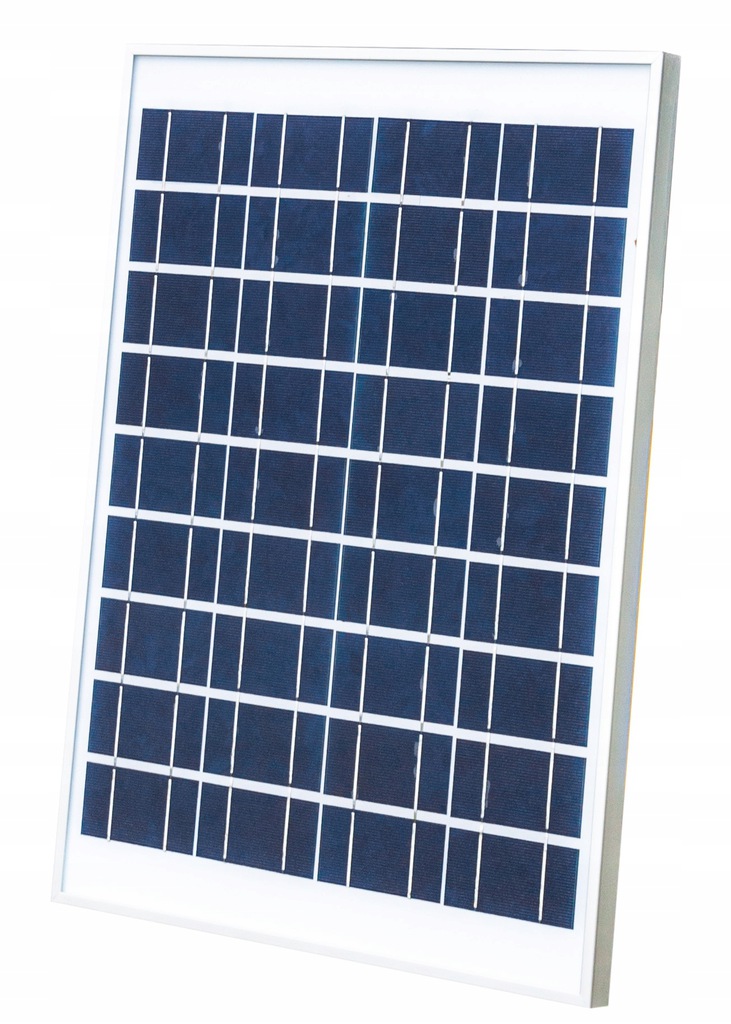

1. Photovoltaic polmorphic panel with a power of 20W
Dimensions: 465 x 350 x 17 mm
Solar panel solar PANEL SOLAR BATTERY 20W 12V REGULATOR Number of wires:2
The set includes cables with a length of approx.

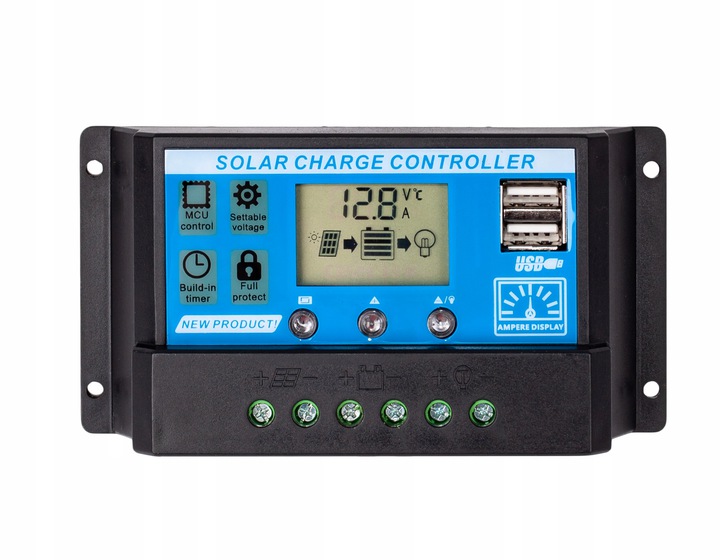

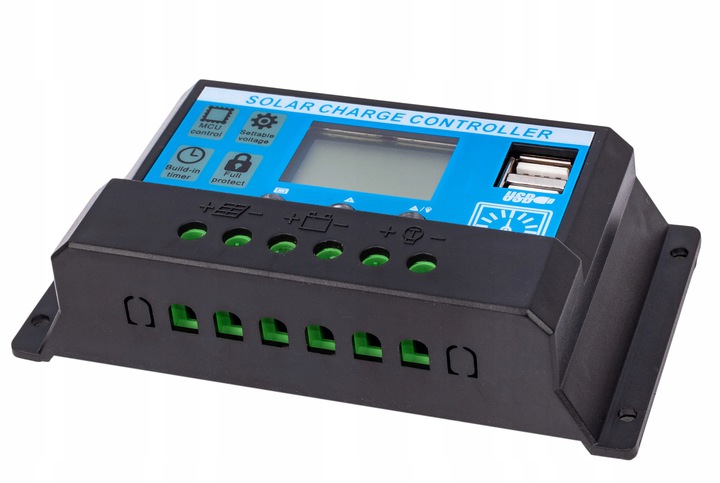

2. Voltage regulator 10A 12 / 24V with twilight function and 2x USB

The controller has a programmable twilight sensor function.
It is possible to turn on the connected receiver after sunset for a specific number of hours.
In addition, the regulator may be expanded with further panels in the future, so we can obtain more electricity.
The controller charges the batteries with the PWM method. It modulates the voltage range from 0 to 100%, which allows for quick and stable battery charging regardless of the weather and the condition of the solar system.

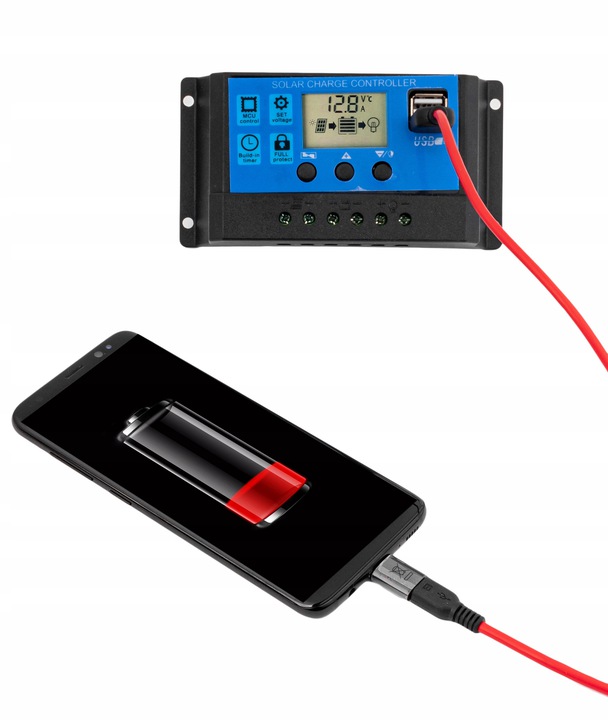

DOUBLE USB

Controller settings:
Turning on / off receivers.
Twilight switch (turning on receivers for a given time after sunset).
Programmable up to 15h.
Regulator security:

Solar battery short circuit.
Load side overload.
Reverse battery polarity.
Overheating protection.

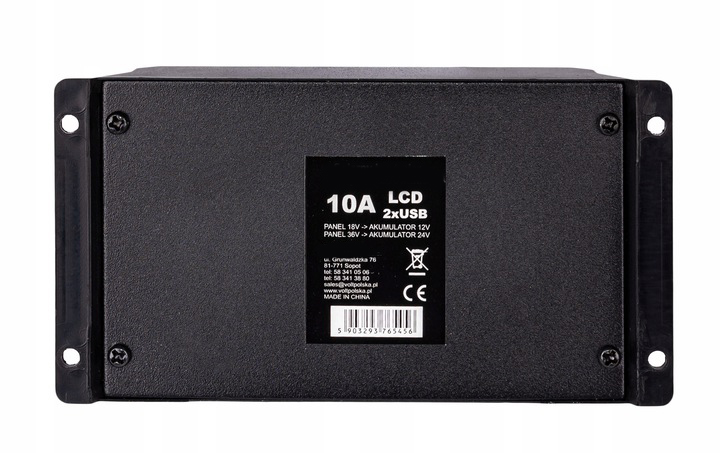

REGULATOR TECHNICAL DATA:
Discharge protection: 11.1V / 22.2V
Load restoration point: 12.5V / 25V
Maximum input voltage (from panels): 48V
Waterproof class: IP30
Max. charging current (panel current): 10A
Max. load current: 10A
Working voltage: 12V 24V DC
Own consumption: <6mA
Working temperature: -20 ℃ to +60 ℃
Dimensions: 97 x 66 x 25mm (L / W / H)
2x USB
Charging compensation due to temperature: -30.0mV / 1 deg. C / 2V
