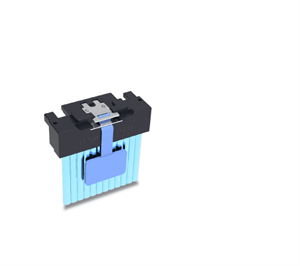

OmniEdge™ ASM Cable

SKU: FS9103282
as a new internal cable to board or board to board interconnection product family for next Gen SAS, PCIe, Ethernet etc applicaion. Omniedge™ ASM is of very excellent SI perfomance so as to support SAS4.0, PCIeGen4/Gen5, even PCIeGen6 in future. The high speed per lane of ASM could support 32Gbps NRZ, 56G PAM4 data rate with potential up to 64G PAM4 & 112G PAM4
Reproduction is welcome and allowed for free circulation only.


OmniEdge™ ASM Cable

Product Introduction

  • Support cable to board application: 1.57mm PCB card thickness
  • Multiple channels are optional: 4X/6X(38pos),8X/12X(74pos),16X/20X(124pos) more customized requirement available
  • Small size design with great robustness : Pitch 0.6mm connector and max 25N wrenching test
  • Excellent SI performance: Signal rates up to PCIe5 32Gbps, SAS 4.0 24Gbps and 56 Gbps PAM4 and 112 GT/s PAM4
  • Compatible with many different industry standards and protocols including SAS, PCIe and Ethernet
  • Straight, 45degree, right angle, cable plug are optional
  • 85 ohm and 92ohm impedances are optional
  • 30-34AWG cables are available for both discrete and ribbon cable
  • RoHS compliant. Halogen free is available on request
  • Proven anti skew-mate capability
  • Simple structural keying/polarizing of very strong mechanical feature
  • Robust and stable pull-to-release latching
  • Board end connector accepts 1.57mm Add-In-Card as well for increased application flexibility
  • Provide connector mated with customer paddle card and board connector mated with cable options
