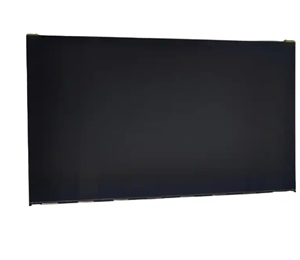

Picture of 23.8-inch, 1920*1080 resolution computer display

23.8-inch, 1920*1080 resolution computer display

SKU: FS9103744
Diagonal Size 23.8" Panel Type a-Si TFT-LCD, LCM Resolution 1920(RGB)×1080, FHD 92PPI Pixel Format RGB Vertical Stripe Active Area 527.04(W)×296.46(H) mm
Reproduction is welcome and allowed for free circulation only.


23.8-inch, 1920*1080 resolution computer display

Diagonal Size
23.8"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1920(RGB)×1080, FHD 92PPI
Pixel Format
RGB Vertical Stripe
Active Area
527.04(W)×296.46(H) mm
Bezel Opening
-
• Outline Dim.
535(W)×313(H)×13.7(D) mm
• Treatment
Antiglare (Haze 25%), Hard coating (3H)
• Luminance
350 cd/m² (Typ.)
• Contrast Ratio
1000:1 (Typ.) (TM)
• View Direction
Symmetry
• Response Time
5 (Typ.)(G to G)
• Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
• Operating Mode
ADS, Normally Black, Transmissive
• Support Color
16.7M 100% sRGB
• Light Source
WLED [20S4P] , 30K hours , W/O Driver
• Weight
2.20Kgs (Typ.)
• Designed For

• Frame Rate
167Hz
• Touch Panel
Without
• Interface Type
• LVDS (4 ch, 8-bit) , 92 pins Connector
• Power Supply
• 10.0V (Typ.)
• Environment
• Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Key attributes
Industry-specific attributes
Type
TFT
Display Size
23.8-inch
Other attributes
Supplier Type
Computer monitor
Place of Origin
China
Brand Name
BOE
Resolution
1920*1080
Interface
LVDS
Size
23.80 Inch
Product Name
LCD Dispaly Screen
Viewing Angle
89/89/89/89 (Typ.)(CR 10)
Display mode
A-si TFT
Mass
2.20Kgs (Typ.)
Refresh Rate
167HZ
WEIGHT
2.20Kgs (Typ.)
Active Area
527.04(W)*296.46(H) mm
